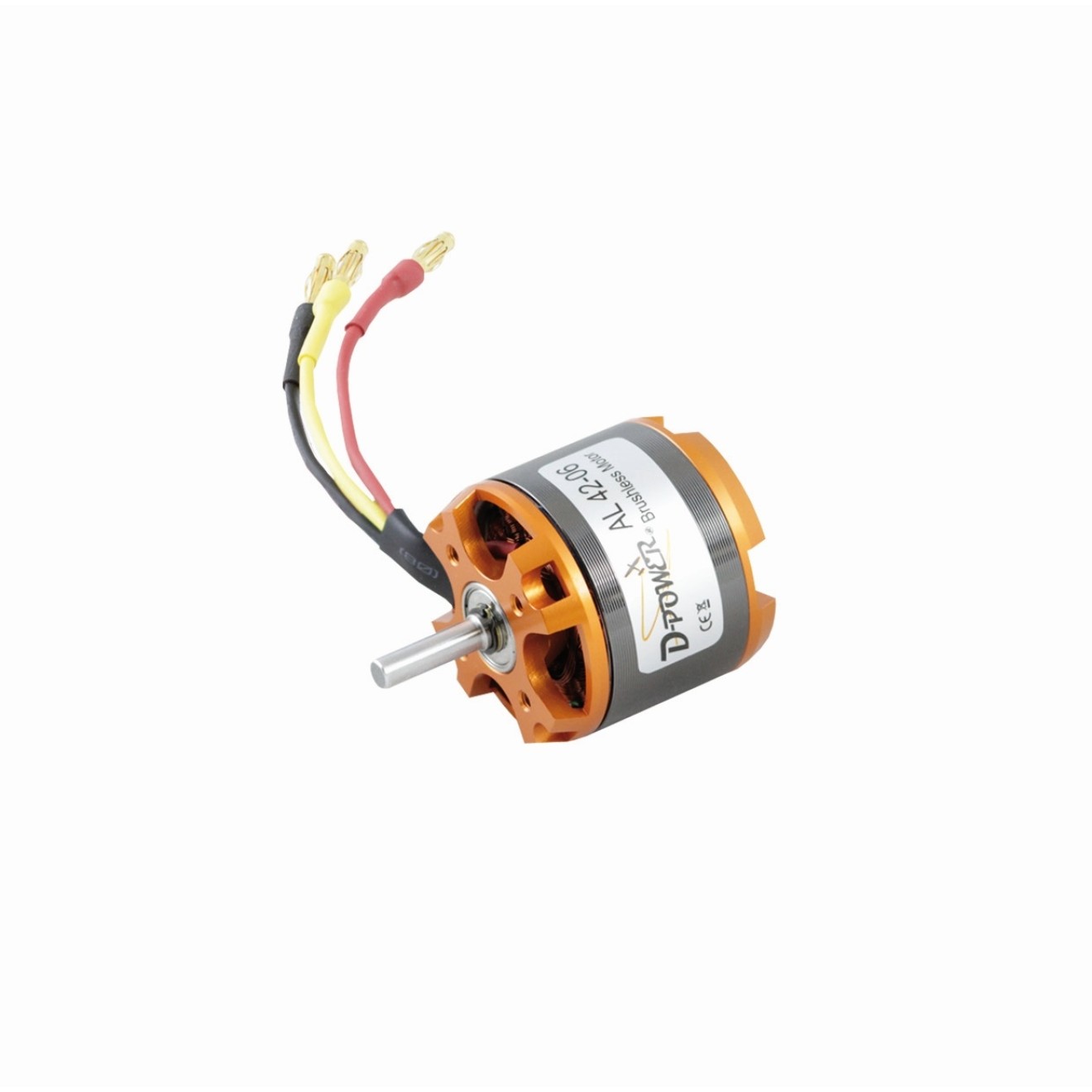

D-Power AL 42-06 Brushless Motor
Article number: AL4206
Article code: 4251014720095
With the D-Power Brushless motor series we offer you a wide range of high quality drives. The external rotors have finest balanced bells, which guarantee a perfect concentricity. Due to the high-quality neodymium magnets and the windings made of especially pure copper, the D-Power motors achieve a high efficiency.
The outrunners can be mounted on both sides. Included in the delivery of the motors are prop adapter, rear wall mounting and mounting material.
All motors were measured and tested in Germany by a well-known engineer. The data provided by the manufacturer were confirmed by the technical measurements.
Features:
Very high torque
High quality neodymium magnets
Double ball bearing
Concentricity optimised, finely balanced aluminium bells
CNC-milled from high-quality aluminium

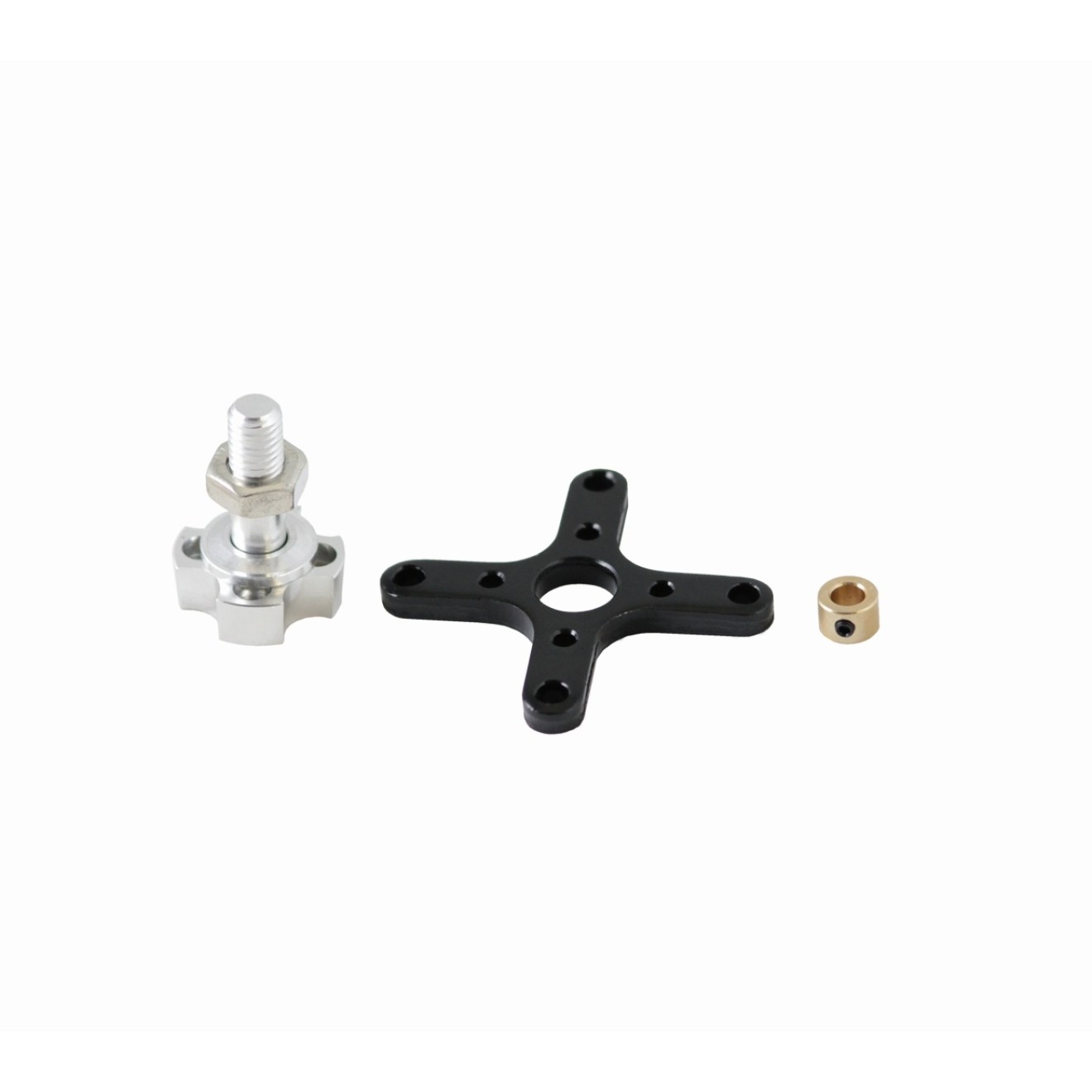

Supplied complete with prop adapter, rear wall attachment and mounting material
Technical data:
Dimensions: 42,5 x 40 mm
Shaft Ø: 5,0
Lipo / NC cells: 3 - 6 / 10 - 18
No-load current: 1.5A
recommended current: 40A
Current short term: 45A
Idle speed: 540 rpm/V
weight: 195g
thrust: approx. 3500g
Propellers recommendation:
number of cells - propeller - current
3S Lipo 17 x 10 - 40A
4S Lipo: 15 x 10 / 16 x 8 - 42A
5S Lipo: 14 x 7 / 15 x 7 - 40A
6S Lipo: 14 x 6 / 13 x 7 - 41A
